使用虚拟机开发的局域网设置

9 minute read

由于开发通常在Linux环境下进行，而我们常用的主机是Windows，因此需要利用Windows虚拟机来配置开发环境，这样可以很好的隔离开发环境。但是，由于虚拟机中默认的网络环境和STM32MP嵌入式开发板不在一个局域网下，因此无法直接通信，通过配置，可以实现STM32MP嵌入式开发板、Windows主机以及虚拟机三者在同一个局域网下，同时它们都能够连接互联网。

如图是我的物理连接：

本教程以Vmware虚拟机软件为例，Linux系统采用Ubuntu22.04.5，以下是具体操作步骤：

一、共享Wifi连接到以太网口

Windows+Ubuntu虚拟机参考

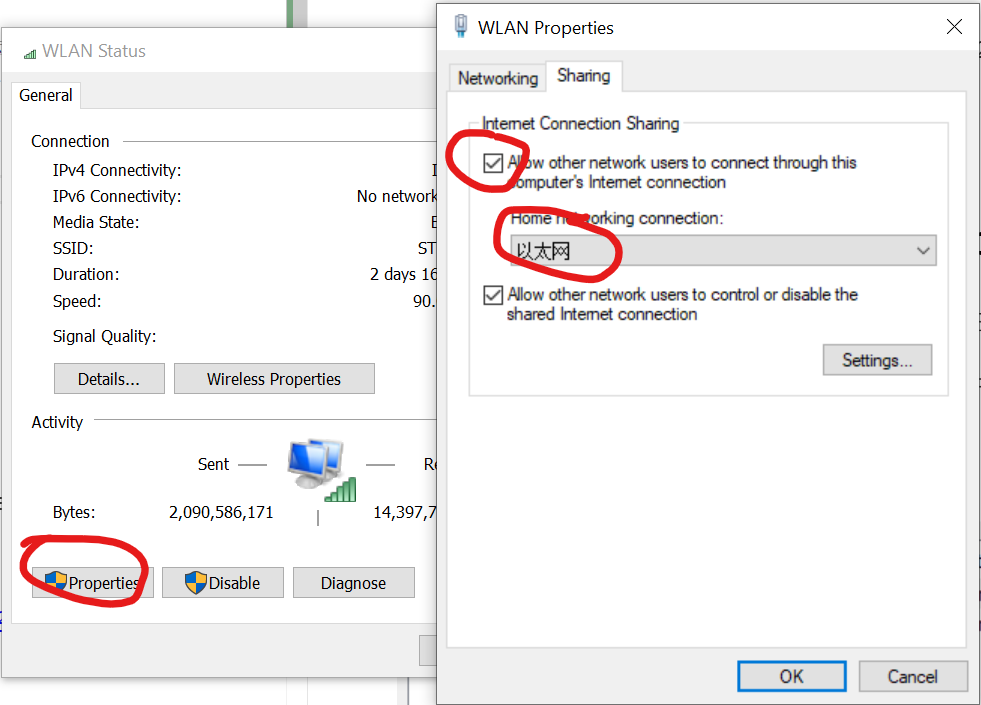

首先共享WiFi连接到以太网口，在网络共享中心中选择可以上互联网的网络，点击属性->共享->勾选允许其他网络->选择以太网

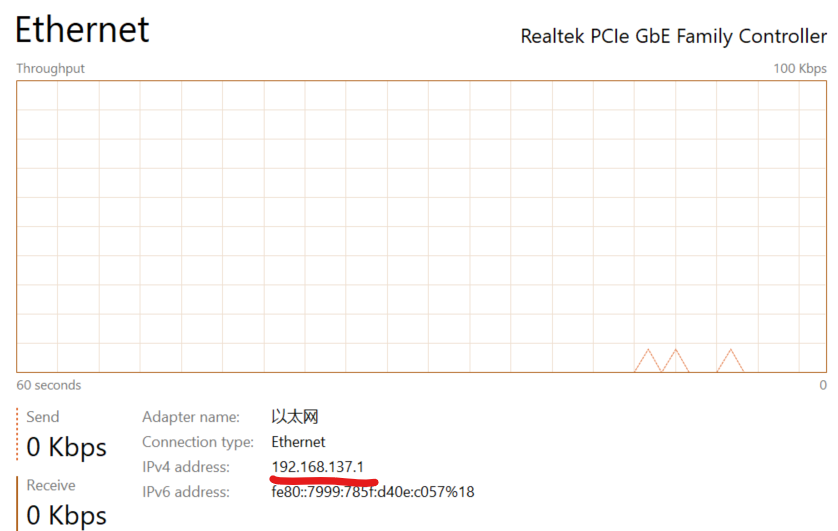

可以看到以太网的ip变成了192.168.137.1

Ubuntu物理机参考

通过以下步骤共享无线网络（wlp1s0）到有线网卡（eno1），并设置 eno1 的 IP 为 192.168.20.1：

步骤 1：设置 eno1 的静态 IP

sudo ifconfig eno1 192.168.20.1 netmask 255.255.255.0 up

这会为 eno1 设置 IP 192.168.20.1，子网掩码 255.255.255.0。

步骤 2：启用 IP 转发

sudo sysctl -w net.ipv4.ip_forward=1

这会临时启用 IPv4 转发（重启后失效）。

步骤 3：配置 iptables NAT 规则

sudo iptables -t nat -A POSTROUTING -o wlp1s0 -j MASQUERADE
sudo iptables -A FORWARD -i eno1 -o wlp1s0 -j ACCEPT
sudo iptables -A FORWARD -i wlp1s0 -o eno1 -m state --state RELATED,ESTABLISHED -j ACCEPT

这些规则会：

将来自 eno1 的流量通过 wlp1s0 进行 NAT。
允许双向流量转发。

步骤 4：验证配置

检查 eno1 的 IP：
```
ifconfig eno1
```
应显示 inet 192.168.20.1。
检查 IP 转发是否启用：
```
cat /proc/sys/net/ipv4/ip_forward
```
输出应为 1。

检查 iptables 规则：

sudo iptables -t nat -L -v
sudo iptables -L -v

步骤 5（可选）：持久化配置如果希望配置永久生效：

永久启用 IP 转发：

echo "net.ipv4.ip_forward=1" | sudo tee /etc/sysctl.d/99-ip-forward.conf
sudo sysctl -p

保存 iptables 规则（依赖系统工具如 iptables-persistent）：

sudo apt install iptables-persistent -y
sudo netfilter-persistent save

二、将虚拟网络连接至以太网

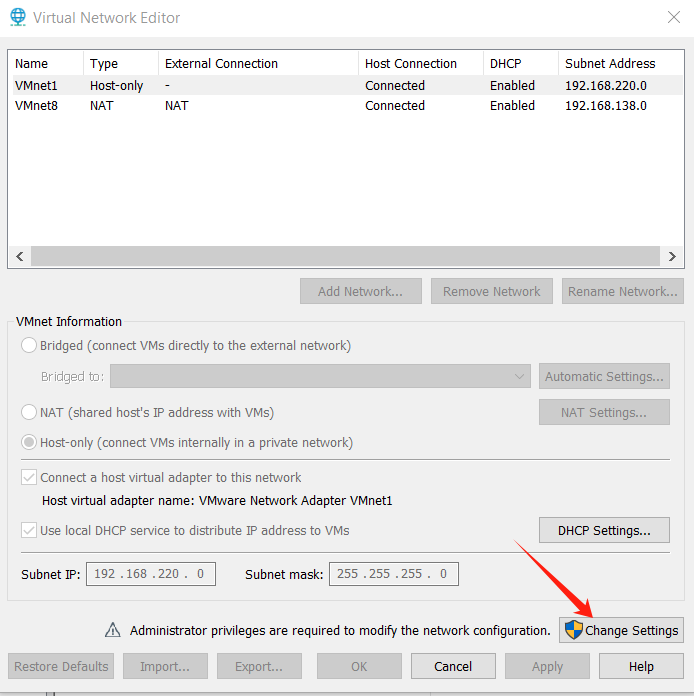

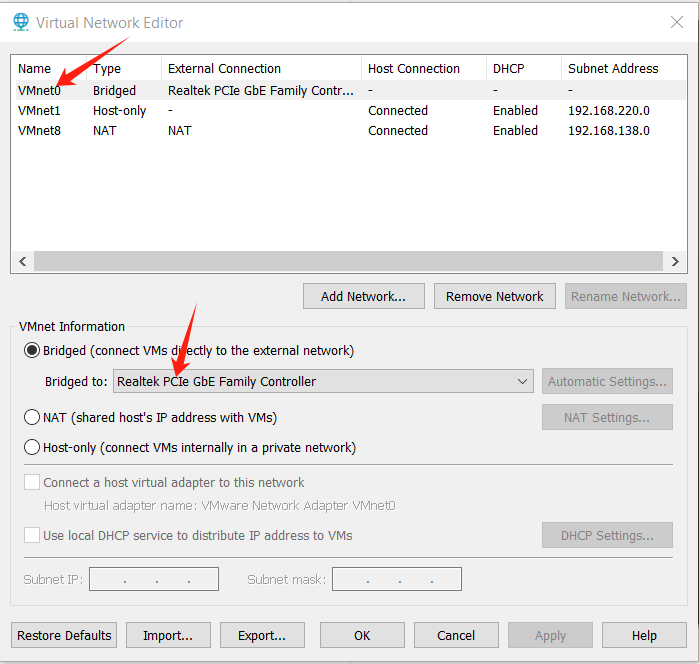

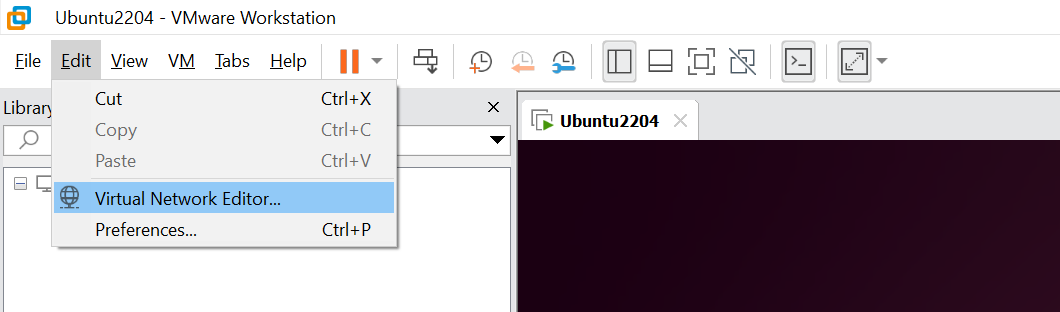

在VMware中打开虚拟网络编辑。通常，VMware通过VMnet0与宿主机连接。在VMware中选择Edit->Virtual Network Editor->Change Settings->VMnet0->Bridged to

三、编辑虚拟机网络连接

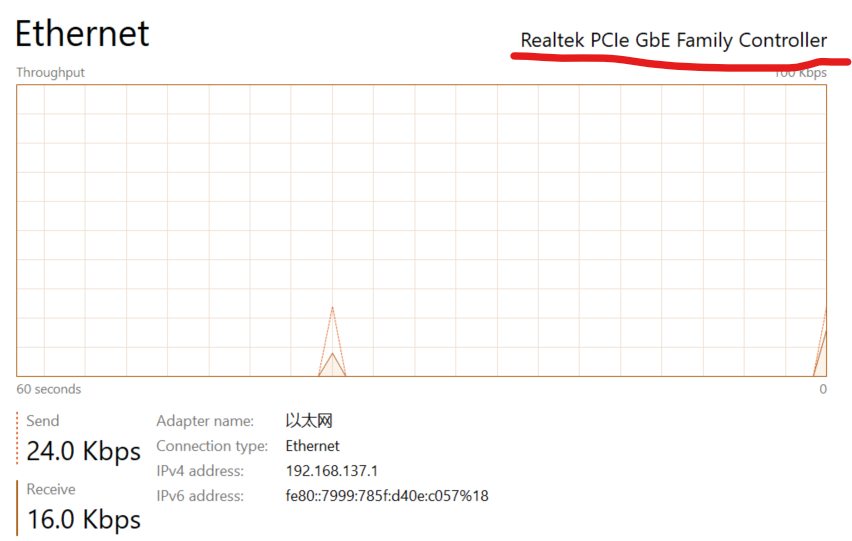

2、桥接到你实际要用的网卡上，打开任务管理器，可以看到对应的网卡名称。点击OK，打开虚拟机

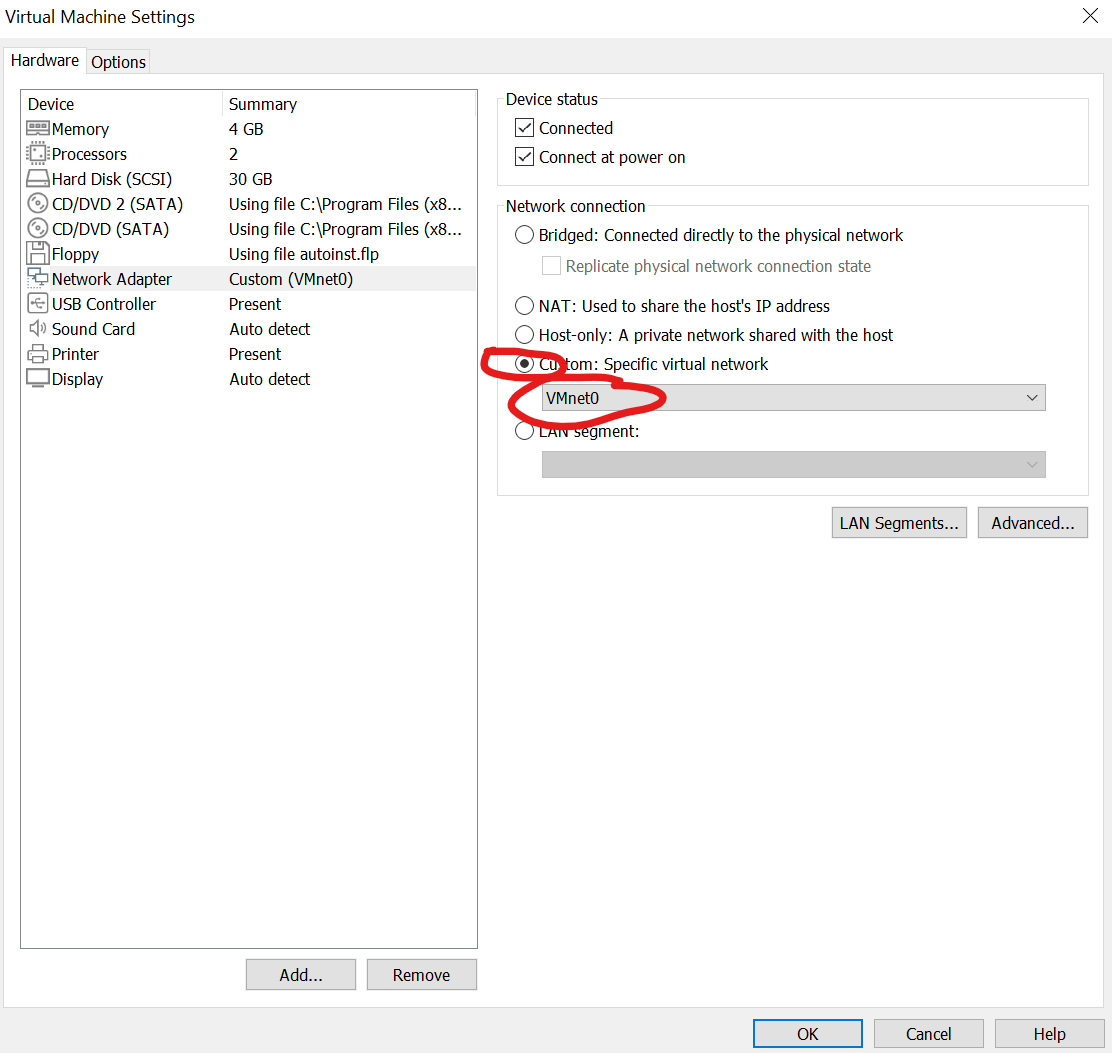

编辑虚拟机网络连接，选择用户自定义->VMnet0

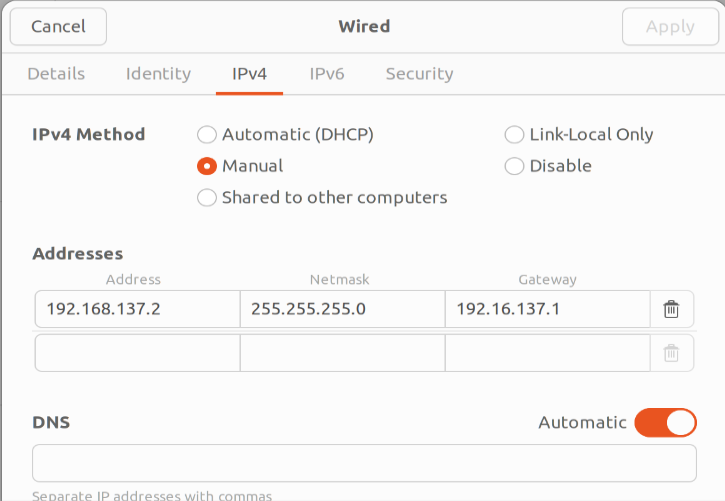

四、在Ubuntu中连接网络

在命令行中查看当前ip，如果出现分配的IPV4地址说明设置成功

acc@acc-virtual-machine:~$ ifconfig
ens33: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 192.168.137.2  netmask 255.255.255.0  broadcast 192.168.137.255
        inet6 fe80::9ce4:25c6:b4bc:b401  prefixlen 64  scopeid 0x20<link>
        ether 00:0c:29:a1:53:07  txqueuelen 1000  (Ethernet)
        RX packets 1501  bytes 267972 (267.9 KB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 694  bytes 91426 (91.4 KB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

lo: flags=73<UP,LOOPBACK,RUNNING>  mtu 65536
        inet 127.0.0.1  netmask 255.0.0.0
        inet6 ::1  prefixlen 128  scopeid 0x10<host>
        loop  txqueuelen 1000  (Local Loopback)
        RX packets 953  bytes 73571 (73.5 KB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 953  bytes 73571 (73.5 KB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

acc@acc-virtual-machine:~$

五、在STM32MP开发板中连接网络

使用`systemd-networkd`

推荐优先使用systemd-networkd，打开10-end0.network文件，注意end0是网络的接口名字，可通过ifconfig获取

root@stm32mp2-e3-e0-f5:~# ifconfig
end0      Link encap:Ethernet  HWaddr 10:E7:7A:E3:E0:F5
          inet addr:192.168.20.200  Bcast:192.168.20.255  Mask:255.255.255.0
          inet6 addr: fe80::12e7:7aff:fee3:e0f5/64 Scope:Link
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:0 errors:0 dropped:0 overruns:0 frame:0
          TX packets:39 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:0 (0.0 B)  TX bytes:6912 (6.7 KiB)
          Interrupt:61 Base address:0x8000

编辑配置文件

vi /etc/systemd/network/10-end0.network

填入以下内容

[Match]
Name=end0

[Network]
Address=192.168.20.200/24
Gateway=192.168.20.1
DNS=223.5.5.5
DNS=8.8.8.8

重启网络管理器使之生效

systemctl daemon-reload
systemctl restart systemd-networkd

使用NetworkManger

如果systemd-networkd不可用，可以选择NetworkManger。

在STM32MP开发板中设置ip地址

nmcli connection modify eth0 ipv4.addresses 192.168.137.3/24
nmcli connection modify eth0 ipv4.gateway 192.168.137.1
nmcli connection modify eth0 ipv4.dns "8.8.8.8 8.8.4.4"
nmcli connection modify eth0 ipv4.method manual

查看一下网络状态

root@ccmp15-dvk:~# ifconfig
eth0      Link encap:Ethernet  HWaddr 00:04:F3:4E:14:24
          inet addr:192.168.137.3  Bcast:192.168.137.255  Mask:255.255.255.0
          inet6 addr: fe80::204:f3ff:fe4e:1424/64 Scope:Link
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:1060 errors:0 dropped:0 overruns:0 frame:0
          TX packets:1108 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:189791 (185.3 KiB)  TX bytes:159335 (155.6 KiB)
          Interrupt:57 Base address:0xc000

lo        Link encap:Local Loopback
          inet addr:127.0.0.1  Mask:255.0.0.0
          inet6 addr: ::1/128 Scope:Host
          UP LOOPBACK RUNNING  MTU:65536  Metric:1
          RX packets:1397 errors:0 dropped:0 overruns:0 frame:0
          TX packets:1397 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:103836 (101.4 KiB)  TX bytes:103836 (101.4 KiB)

wlan0     Link encap:Ethernet  HWaddr 00:04:F3:4E:14:25
          UP BROADCAST MULTICAST  MTU:1500  Metric:1
          RX packets:0 errors:0 dropped:0 overruns:0 frame:0
          TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:0 (0.0 B)  TX bytes:0 (0.0 B)

六、网络连接测试

尝试从STM32MP开发板中ping一下Windows主机、Ubuntu虚拟机以及百度

root@ccmp15-dvk:~# ping 192.168.137.1
PING 192.168.137.1 (192.168.137.1): 56 data bytes
64 bytes from 192.168.137.1: seq=0 ttl=128 time=0.762 ms
64 bytes from 192.168.137.1: seq=1 ttl=128 time=0.708 ms
64 bytes from 192.168.137.1: seq=2 ttl=128 time=0.840 ms
^C
--- 192.168.137.1 ping statistics ---
3 packets transmitted, 3 packets received, 0% packet loss
round-trip min/avg/max = 0.708/0.770/0.840 ms
root@ccmp15-dvk:~# ping 192.168.137.2
PING 192.168.137.2 (192.168.137.2): 56 data bytes
64 bytes from 192.168.137.2: seq=0 ttl=63 time=1.218 ms
64 bytes from 192.168.137.2: seq=0 ttl=64 time=1.305 ms (DUP!)
64 bytes from 192.168.137.2: seq=0 ttl=63 time=1.349 ms (DUP!)
64 bytes from 192.168.137.2: seq=0 ttl=64 time=1.390 ms (DUP!)
64 bytes from 192.168.137.2: seq=1 ttl=63 time=1.615 ms
64 bytes from 192.168.137.2: seq=1 ttl=64 time=1.717 ms (DUP!)
64 bytes from 192.168.137.2: seq=1 ttl=63 time=2.064 ms (DUP!)
64 bytes from 192.168.137.2: seq=1 ttl=64 time=2.119 ms (DUP!)
^C
--- 192.168.137.2 ping statistics ---
2 packets transmitted, 2 packets received, 6 duplicates, 0% packet loss
round-trip min/avg/max = 1.218/1.597/2.119 ms
root@ccmp15-dvk:~# ping baidu.com
PING baidu.com (110.242.68.66): 56 data bytes
64 bytes from 110.242.68.66: seq=0 ttl=49 time=48.773 ms
64 bytes from 110.242.68.66: seq=1 ttl=49 time=48.933 ms
64 bytes from 110.242.68.66: seq=2 ttl=49 time=49.842 ms
^C
--- baidu.com ping statistics ---
3 packets transmitted, 3 packets received, 0% packet loss
round-trip min/avg/max = 48.773/49.182/49.842 ms
root@ccmp15-dvk:~#

从Ubuntu虚拟机中ping一下Windows主机、STM32MP开发板以及百度

acc@acc-virtual-machine:~$ ping 192.168.137.1
PING 192.168.137.1 (192.168.137.1) 56(84) bytes of data.
64 bytes from 192.168.137.1: icmp_seq=1 ttl=128 time=0.993 ms
64 bytes from 192.168.137.1: icmp_seq=2 ttl=128 time=0.796 ms
^C
--- 192.168.137.1 ping statistics ---
2 packets transmitted, 2 received, 0% packet loss, time 1002ms
rtt min/avg/max/mdev = 0.796/0.894/0.993/0.098 ms
acc@acc-virtual-machine:~$ ping 192.168.137.3
PING 192.168.137.3 (192.168.137.3) 56(84) bytes of data.
From 192.168.137.1 icmp_seq=1 Redirect Network(New nexthop: 192.168.137.216)
64 bytes from 192.168.137.3: icmp_seq=1 ttl=64 time=0.914 ms
64 bytes from 192.168.137.3: icmp_seq=1 ttl=63 time=0.914 ms (DUP!)
64 bytes from 192.168.137.3: icmp_seq=1 ttl=64 time=1.08 ms (DUP!)
64 bytes from 192.168.137.3: icmp_seq=1 ttl=63 time=1.08 ms (DUP!)
From 192.168.137.1 icmp_seq=2 Redirect Network(New nexthop: 192.168.137.3)
64 bytes from 192.168.137.3: icmp_seq=2 ttl=64 time=1.28 ms
64 bytes from 192.168.137.3: icmp_seq=2 ttl=63 time=1.28 ms (DUP!)
64 bytes from 192.168.137.3: icmp_seq=2 ttl=64 time=1.28 ms (DUP!)
64 bytes from 192.168.137.3: icmp_seq=2 ttl=63 time=1.28 ms (DUP!)
^C
--- 192.168.137.216 ping statistics ---
2 packets transmitted, 2 received, +6 duplicates, +2 errors, 0% packet loss, time 1002ms
rtt min/avg/max/mdev = 0.914/1.137/1.275/0.150 ms
acc@acc-virtual-machine:~$ ping baidu.com
PING baidu.com (110.242.68.66) 56(84) bytes of data.
64 bytes from 110.242.68.66 (110.242.68.66): icmp_seq=1 ttl=49 time=48.3 ms
64 bytes from 110.242.68.66 (110.242.68.66): icmp_seq=2 ttl=49 time=47.6 ms
64 bytes from 110.242.68.66 (110.242.68.66): icmp_seq=3 ttl=49 time=48.4 ms
^C
--- baidu.com ping statistics ---
3 packets transmitted, 3 received, 0% packet loss, time 2005ms
rtt min/avg/max/mdev = 47.602/48.097/48.382/0.351 ms
acc@acc-virtual-machine:~$

注意

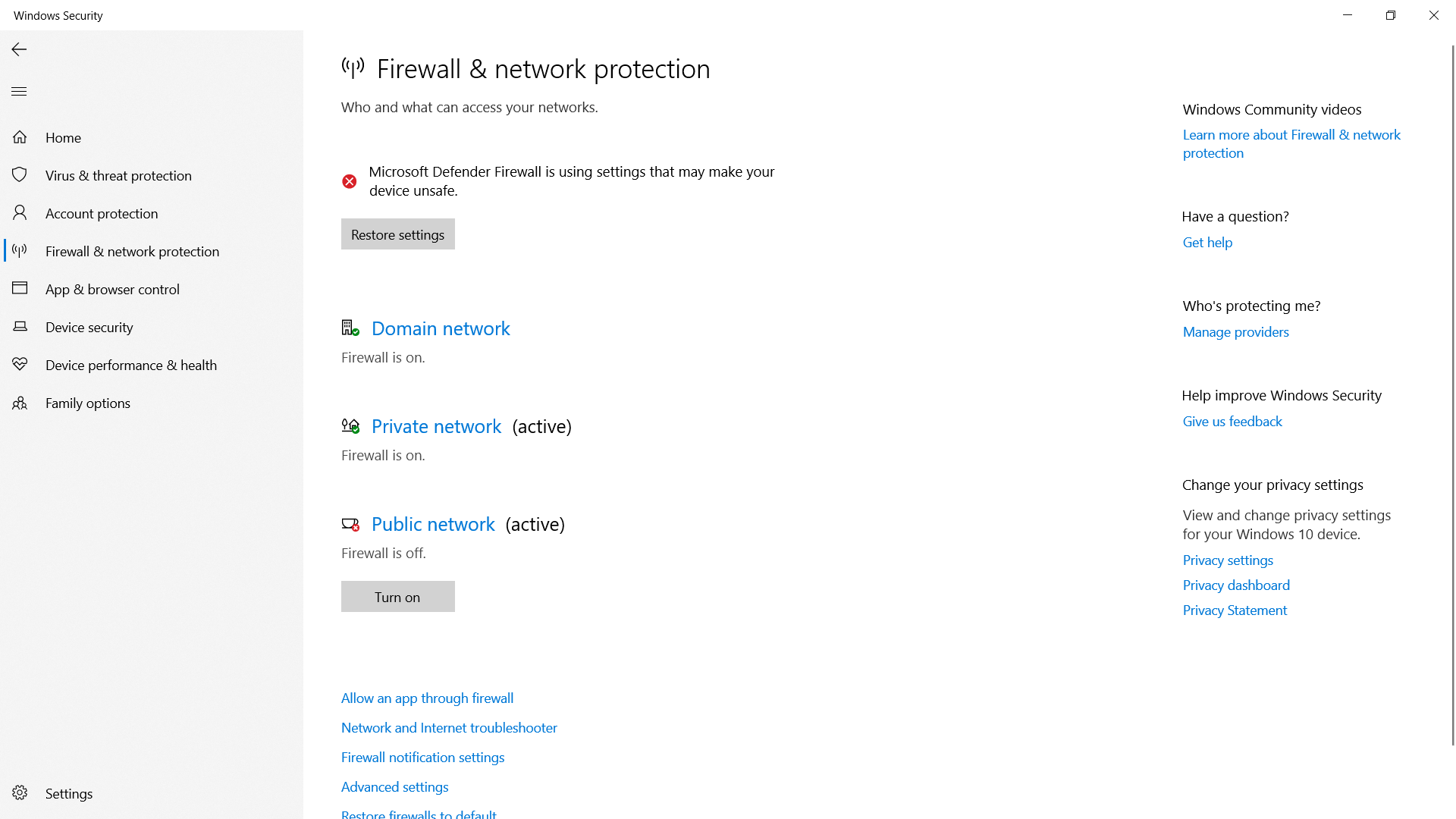

若出现无法ping通主机的情况，尝试关闭Windows的公共网络下的防火墙试试
